12KW Complete Offgrid Solar Kit - $31,678 (Nationwide)
condition:
new
make / manufacturer:
Sol-Ark, OMO
model name / number:
Sol-Ark 15K, OMO Freedom Series
QR Code Link to This Post
Only $31,678 with FREE shipping CONUS ONLY
Make a purchase of $15,000 or more and mention this Craig's List ad or use code CLEMP-1 and receive a FREE EMP Shield (OMO SKU: 14060-AC120-240-Generator) a $389.00 Value! (Does NOT apply to previous purchases)
This Package is a great starter package for a Complete Offgrid Home. This Lithium Battery bank will give you 32,000 Watts of usable Energy. The Solar Array will produce around 59400Watts per day based on 4.5 hours sun. This size of system generally works great for Mid sized homes, and etc that use around 1700 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.
24x 550W Bifacial Mono Solar Panels (13200 Watt Array)
1x Sol-Ark Hybird/Offgrid All in ONE Inverter 15k 48V (Included MPPT Charge Controller built in)
1x OMO 32KW 48V Freedom Series Heated Battery with Bluetooth and LCD Readout
1x Complete Set of Iron Ridge Mounting Rails / Splices / Legs / Fasteners and Bolts
1x Solar Combiner Box (Built for future expansion of additional panels)
1x Anderson Plug Battery Cable Set for Inverter / Battery Connection
1x Gutter Box
1x Spool 500' PV Direct Burial 10AWG Solar Wire
1x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
1x Spool 20' 4/0 AC Main Line
1x MC4 Crimp Kit
1x Installation Manual
These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty
Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Grid Tie Or Offgrid
Built in MPPT Charge Controller - 3x MPPT Inputs
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty
Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power

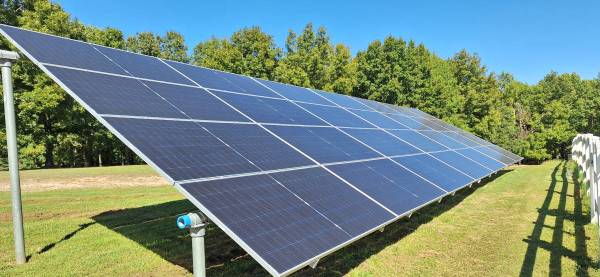

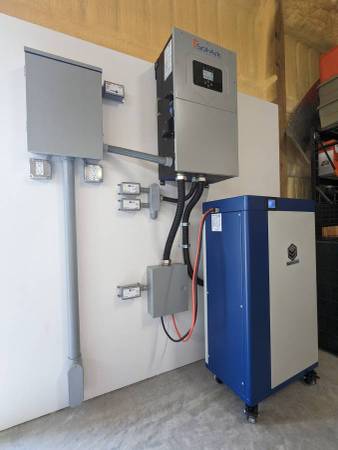

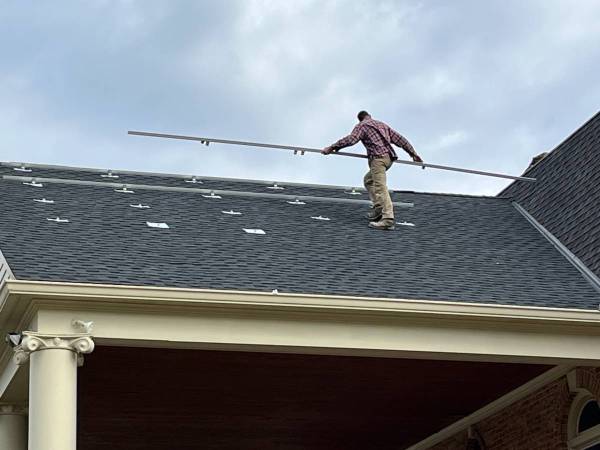

NOTE: Installation is available through our network of contract solar installation specialists at additional cost (see installation images for examples). Please contact us for details if you'd like a quote for installation. We have a number of other kits available. Please see our website to purchase this kit or for other packages and components to meet all your offgrid solar needs. https://omosolar.com
