2.2KW OMO All-In-One Customizable Stacking Inverter/Battery System - $9,461 (Nationwide)
QR Code Link to This Post
Complete DIY System ONLY $9,461 with FREE shipping CONUS ONLY!
Make a purchase of $15,000 or more and mention this Craig's List ad or use code CLEMP-1 and receive a FREE EMP Shield (OMO SKU: 14060-AC120-240-Generator) a $389.00 Value! (Does NOT apply to previous purchases)

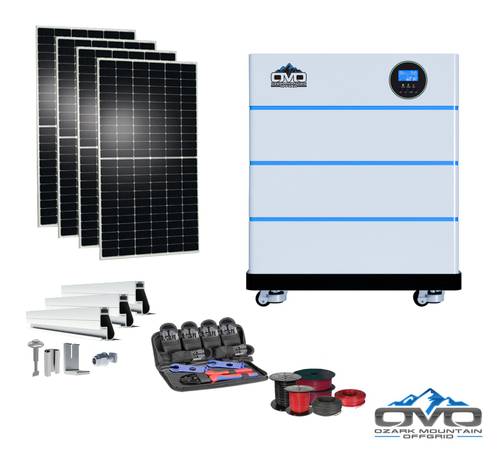

The system includes:
1x OMO 5500W 120VAC 60hz Pure Sine Wave Stackable Inverter
3x 51.2V 5.12KW Stackable Heated Batteries w/Bluetooth (Expandable to MAXIMUM of 6 Batteries Total per Inverter)
1x OMO Stack System Wheeled Base
4x 550W Bifacial Mono Solar Panels (2200 Watt Array) (Expandable to MAXIMUM of 10 550W Panels Total per Inverter)
1x Complete Set of Iron Ridge ROOF Mount Rails / Splices/L-Feet / Fasteners and Bolt
1x MC4 Crimper Tool Set
1x Spool 500' PV Direct Burial 10AWG Solar Wire
1x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty
This 120V single phase Stack system can be further expanded with add-on options for additional solar panels and batteries. Please contact us if you have questions and we can help design a custom solution around your needs.
Inverter Specs -
Built in MPPT Solar Charge Controller - 5500W PV Rated Input
22A Max Solar PV Current IN
125-450V DC MPPT Range
5500W Pure Sine AC Output
Up to 6x Units in Parallel
Grid/Generator Input - 90-140VAC / 63A Bypass Current
WIFI & Bluetooth Monitoring
We have a number of other kits available. Please see our website to purchase this kit or for other packages and components to meet all your offgrid solar needs. https://omosolar.com
